VEVOR PV Combiner Box, 6 String, Solar Combiner Box with 15A Rated Current Fuse, 125A Circuit Breaker, Lightning Arreste and Solar Connector
Highlights:
1.Professional PV Combiner Box: PV combiner box tidied up connection and confluence of photovoltaic modules. It is used to reduce the connection of the photovoltaic array to the inverter and optimize the system structure. Make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails. It will make the photovoltaic system at its best and increase output power.
2.Secure & Reliable Protection: The solar PV combiner box is equipped with 6 pcs 15A DC fuses, a high-voltage lightning arrester, and a 500V 125A air circuit breaker. It has short circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to photovoltaic panels and inverters when fault occurs.
3.IP65 Waterproof & ABS Shell: The IP65 design of the solar PV combiner shell is waterproof and dustproof, ensuring that frequent replacement is not needed. The sturdy shell is made of high-quality ABS plastic material, insulating, moisture-proof, and has no dripping. In addition, it has impact resistance and high break resistance, keeping your equipment well protected in harsh environments.
4.Easy Installation & Wiring: A plug & play and pre-connected cable offers an easy solution for solar panel connection, saving at least 1-2 hours of wiring by hand. The box PV combiner can be mounted on any regular surface with provided mounting buckles, and no key is needed to open and close the box. Built-in with a ground wire connector, ground wire installation is also available. Compatible with any brand of solar panels with solar connectors.
5.Extensive Application: The combiner box is a perfect device for outdoor installation and use. Suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel systems, PV array, RV solar power, home solar panel systems. It can support solar panel systems up to 1080W in 12V system, 2160W in 24V system, 4320W in 48V system.
Details:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1.Professional PV Combiner Box: PV combiner box tidied up connection and confluence of photovoltaic modules. It is used to reduce the connection of the photovoltaic array to the inverter and optimize the system structure. Make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails. It will make the photovoltaic system at its best and increase output power.
2.Secure & Reliable Protection: The solar PV combiner box is equipped with 6 pcs 15A DC fuses, a high-voltage lightning arrester, and a 500V 125A air circuit breaker. It has short circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to photovoltaic panels and inverters when fault occurs.
3.IP65 Waterproof & ABS Shell: The IP65 design of the solar PV combiner shell is waterproof and dustproof, ensuring that frequent replacement is not needed. The sturdy shell is made of high-quality ABS plastic material, insulating, moisture-proof, and has no dripping. In addition, it has impact resistance and high break resistance, keeping your equipment well protected in harsh environments.
4.Easy Installation & Wiring: A plug & play and pre-connected cable offers an easy solution for solar panel connection, saving at least 1-2 hours of wiring by hand. The box PV combiner can be mounted on any regular surface with provided mounting buckles, and no key is needed to open and close the box. Built-in with a ground wire connector, ground wire installation is also available. Compatible with any brand of solar panels with solar connectors.
5.Extensive Application: The combiner box is a perfect device for outdoor installation and use. Suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel systems, PV array, RV solar power, home solar panel systems. It can support solar panel systems up to 1080W in 12V system, 2160W in 24V system, 4320W in 48V system.
Details:

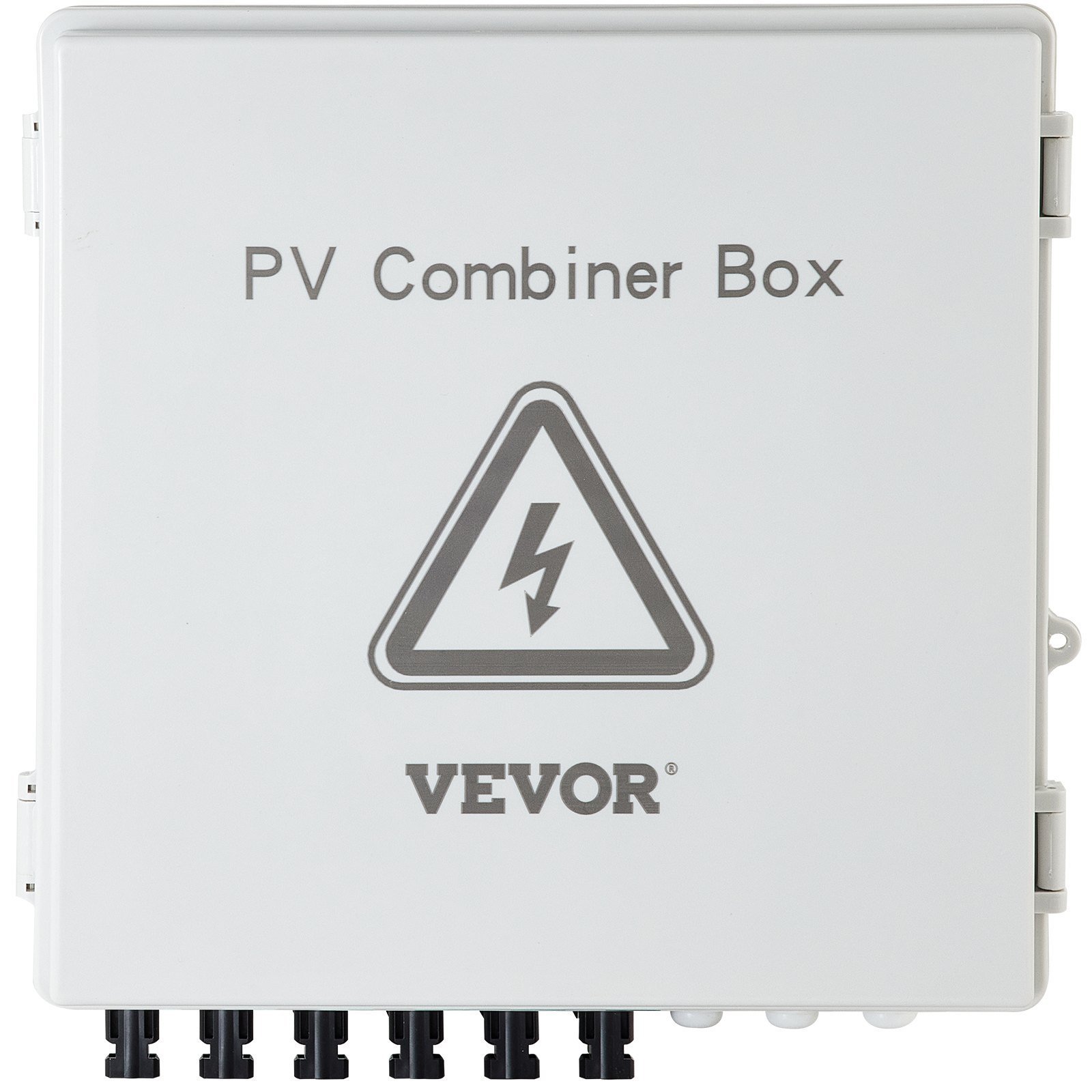

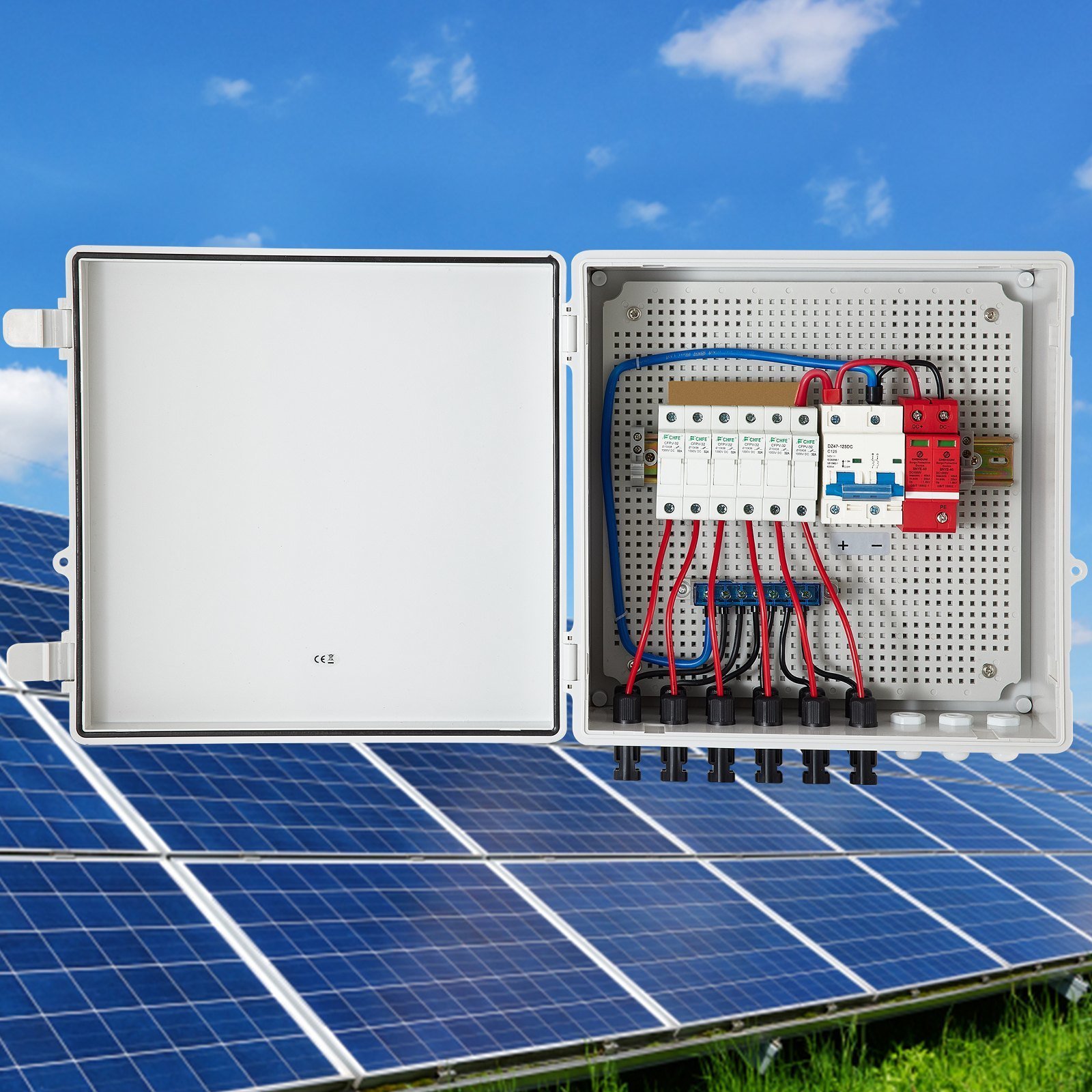

6 String Solar PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
Our PV Combiner Box is a perfect device designed to reduce the connection line between PV modules and inverters, facilitate maintenance and improve reliability. Equipped with high-voltage lightning arresters, 15A DC fuses, and circuit breakers to play a role in circuit protection and lightning protection. It supports photovoltaic On-Grid/Off-Grid solar power generation systems, solar panel systems, up to 1080W in 12V system, 2160W in 24V system, 4320W in 48V system.
- Professional PV Combiner Box
- Secure & Reliable Protection
- IP65 Waterproof & ABS Shell
- Easy Installation & Wiring
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
High Voltage Lightning Arrester
The combiner box for solar systems is built with a professional high voltage lightning arrester to provide lightning and rain protection. Both positive and negative with thunder proof protection.

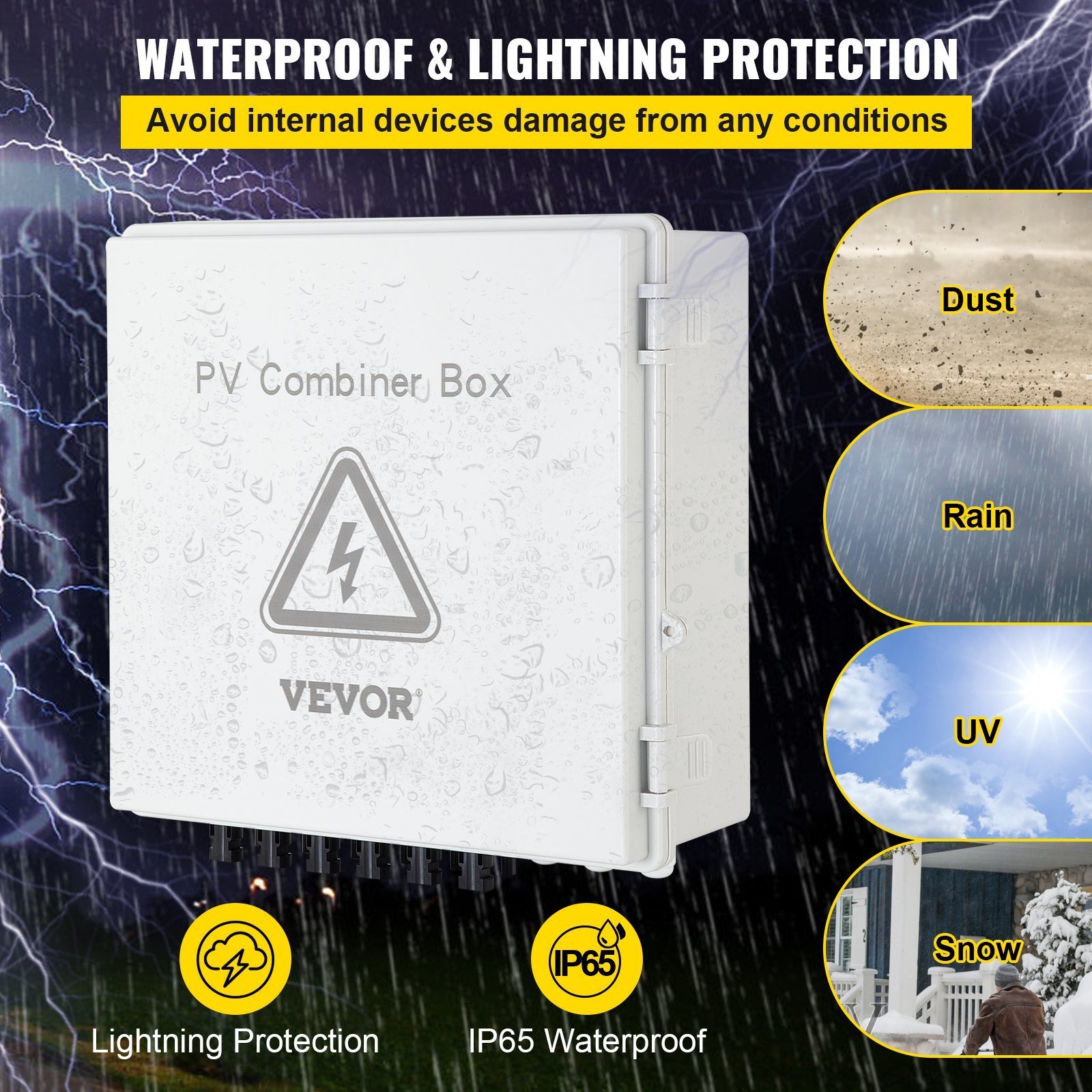

IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures even more security on construction sites.

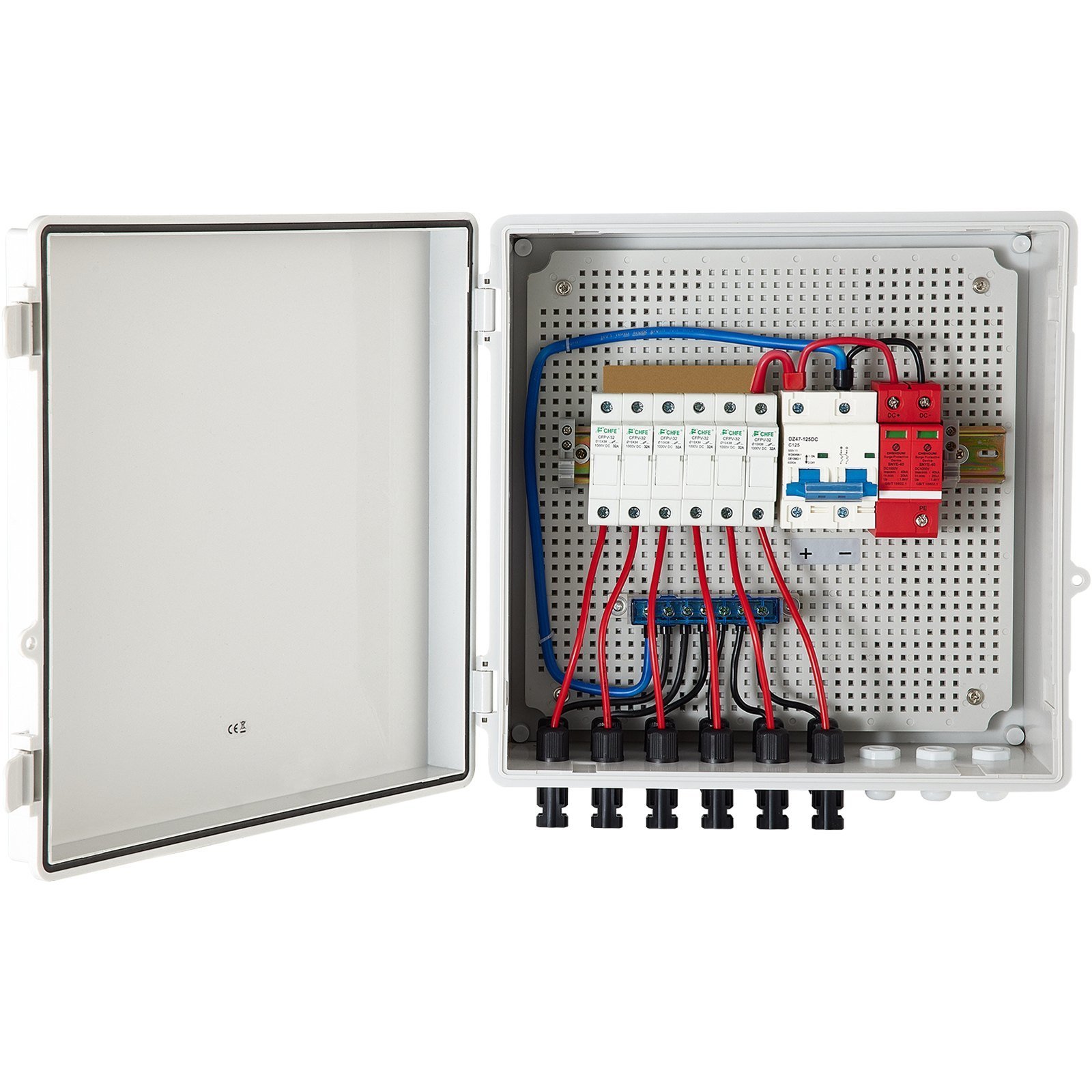

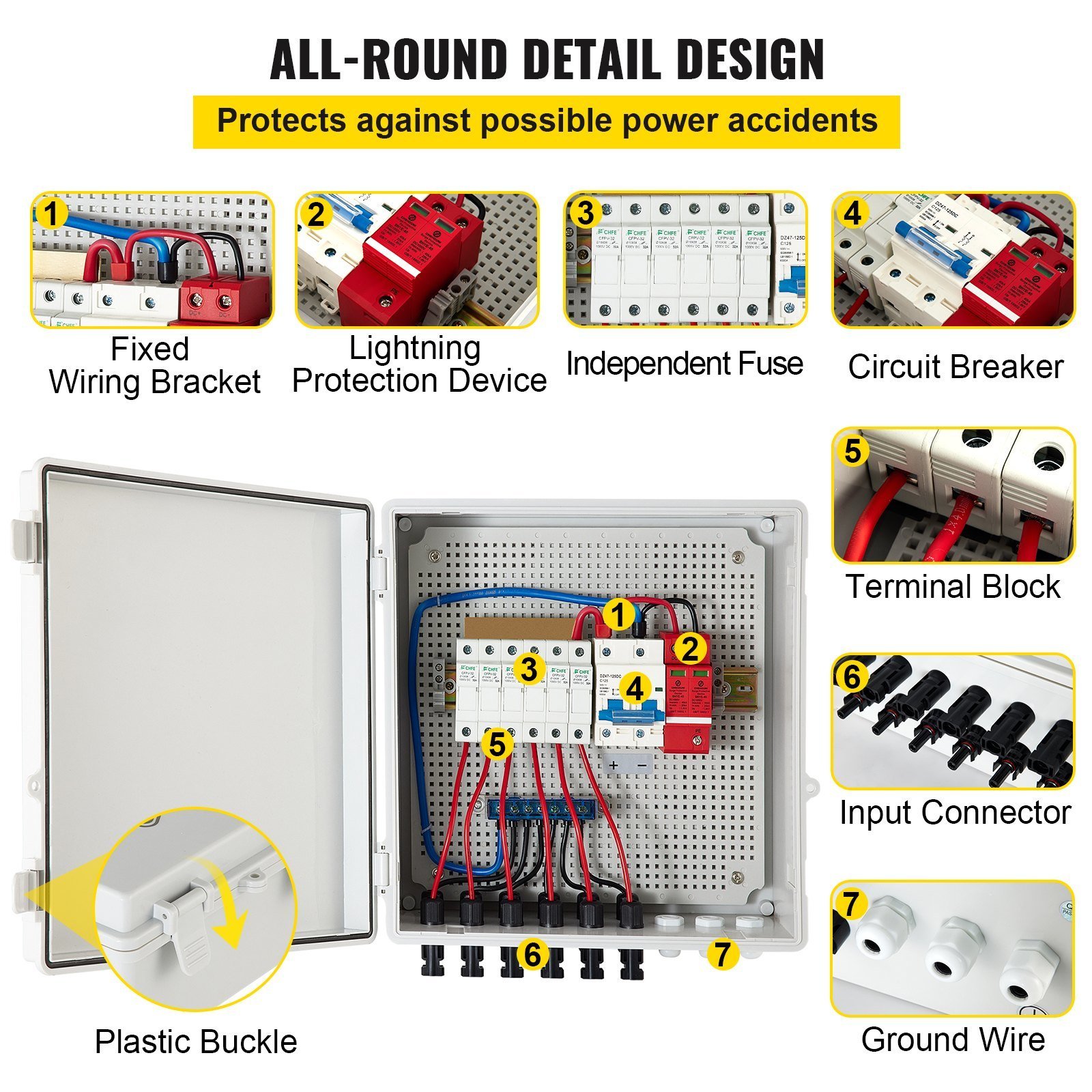

Thoughtful Design

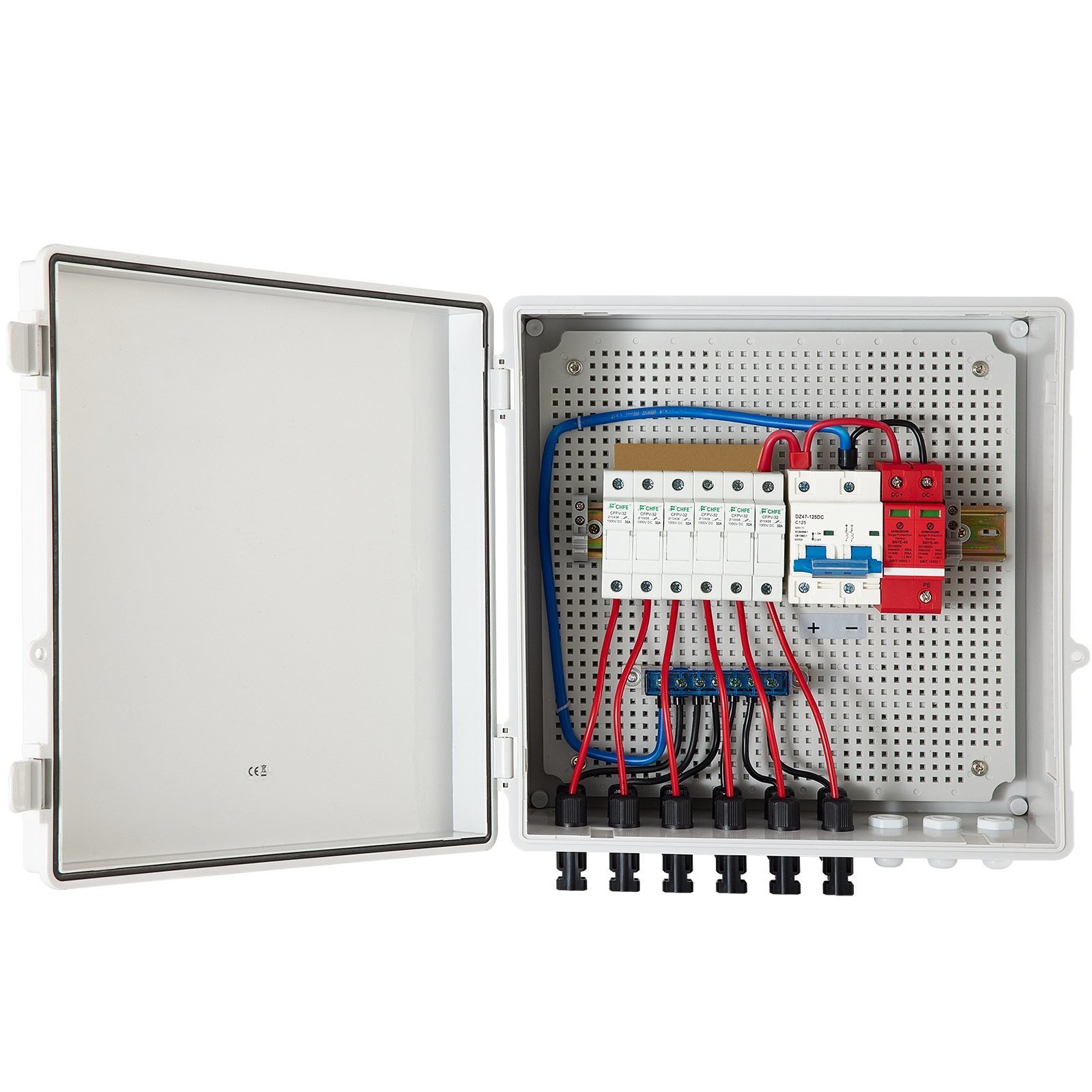

The PV combiner features 6 x 15A fuses for good current limiting characteristics and breaking high ability. 125A air circuit breaker can cut off and connect the load circuit, providing short-circuit fault protection.

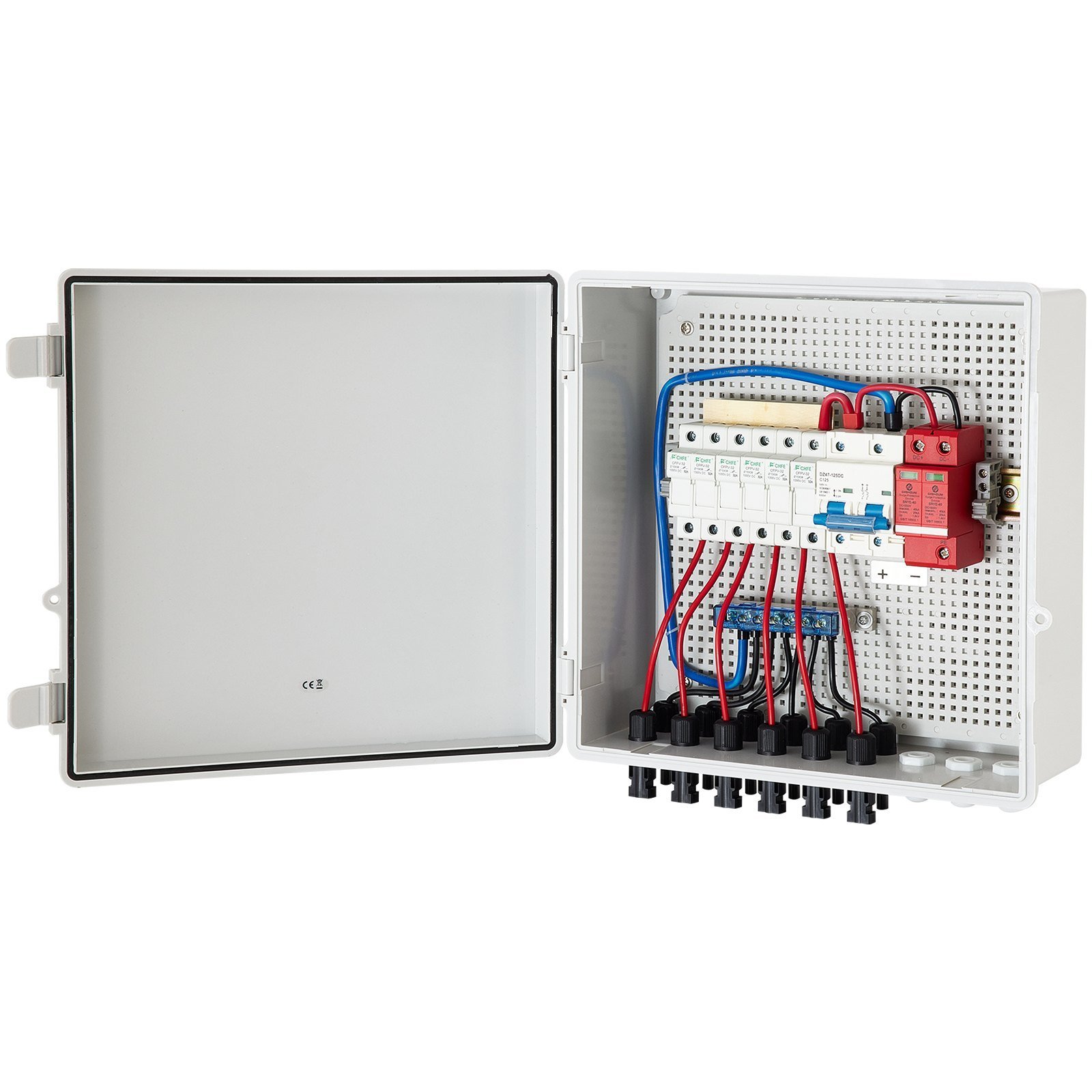

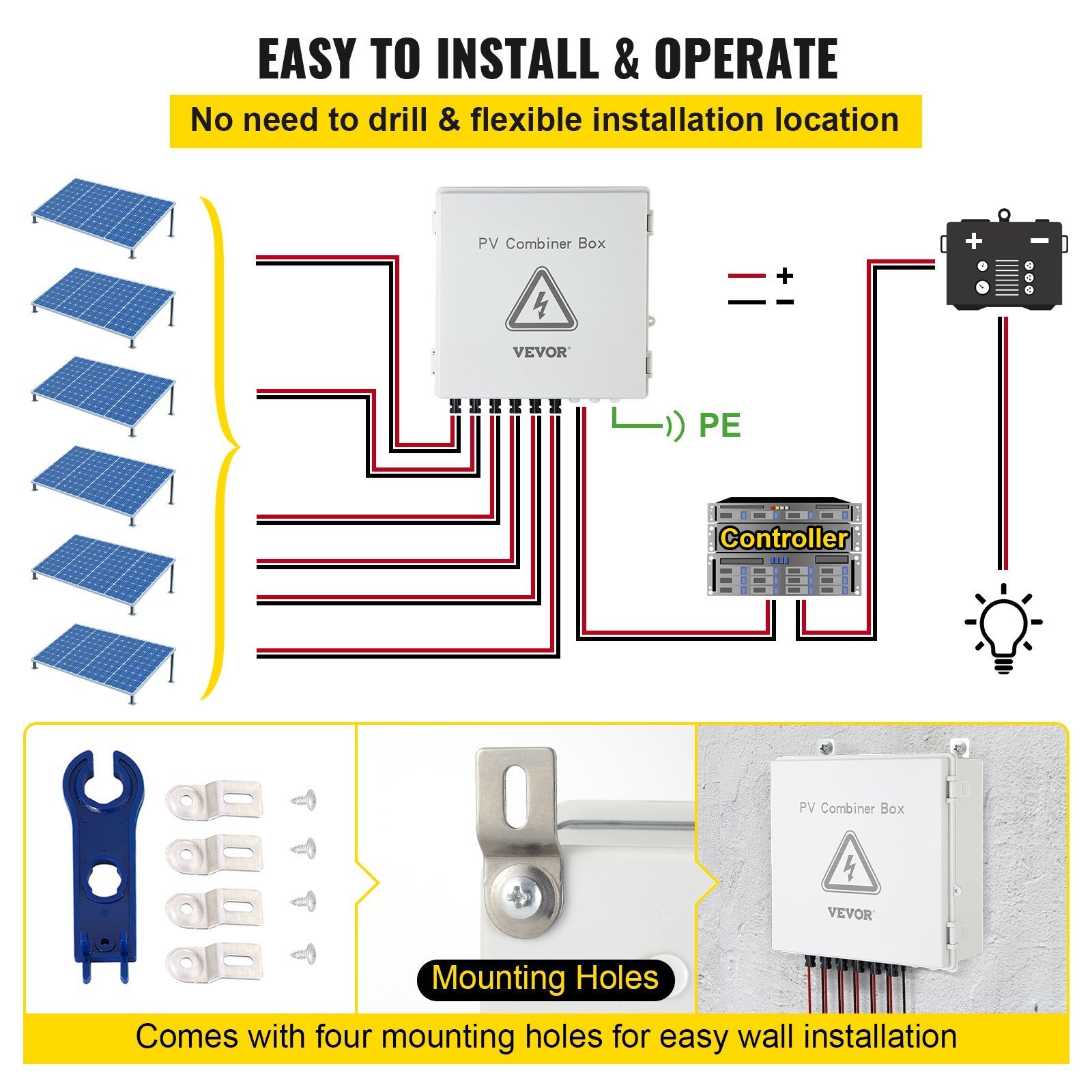

Simple & Straightforward Connection
All wires are pre-wired in the solar breaker combiner box, very sturdy to combine your solar panels, making your solar panel system connection easier. It comes with complete mounting accessories to be installed anywhere.

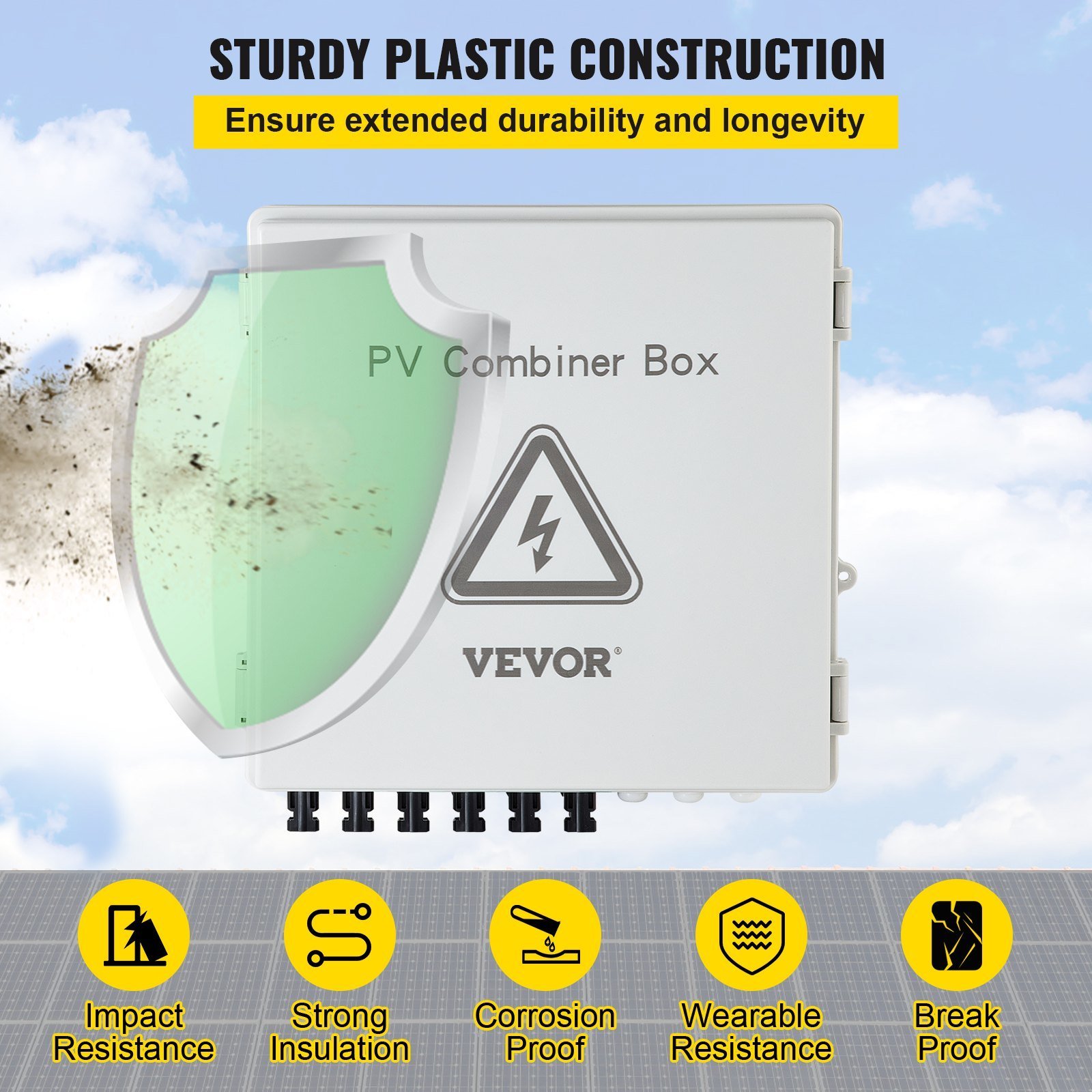

Premium ABS Material
The board wall distributor features ABS material with high impact strength, good weather resistance, and strong wear resistance. In addition, the plastic coating protects against water and dirt.

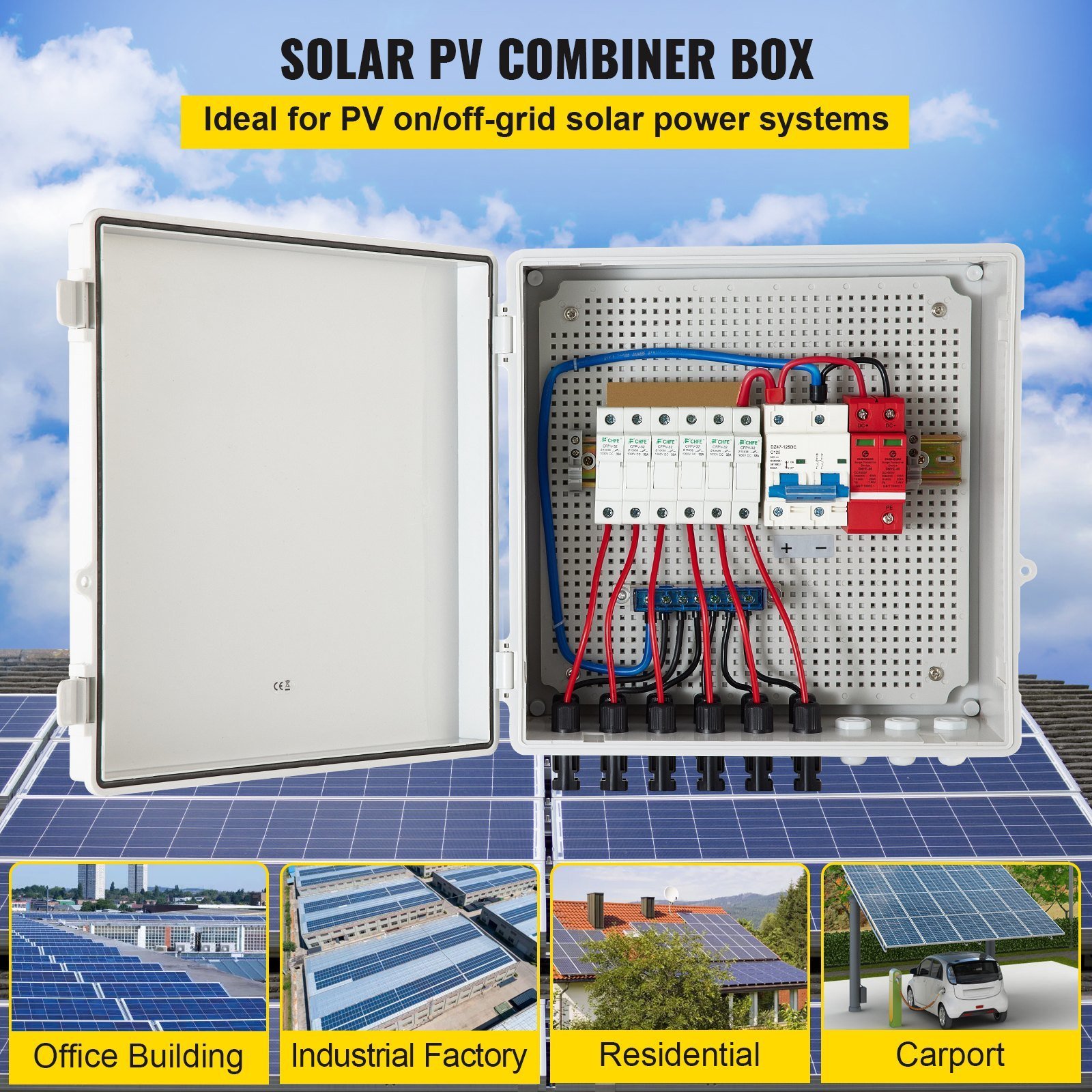

Extensive Application
The solar breaker combiner box is ideal for photovoltaic grid-connected and off-grid power generation systems. It is mainly used with solar panels in office buildings, industrial factories, residential buildings, carports, etc.
Specifications
- Model: SWHL-6
- Number Of Max. Connection PV Array: 6
- Max. Input Current of Single PV Array: 15A
- Total Input Current of PV Array: 90A
- Max Input Voltage of Single PV Array: 500V
- Max Output Voltage: 500V
- Protection Grade: IP65
- Operational Environment Temperature: -30℃ to 70℃ / -22℉ to 158℉
- Relative Humidity: 0-95%, No Condensation
- Cooling Method: Natural Cooling
- Surge Lightning Protection: Yes
- Surge Protective Device: in: 20kA; Imax: 40kA; Up: 1.8kV
- SPD Indicate Light Status: Green: Normal; Red: Triggered
- Air Circuit Breaker Parameter: 500V, 125A; ON/OFF
- Fuse Parameter: DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
- Fuse Holder Parameter: DC1000V, 32A
- RV Solar System: 1080W in 12V System, 2160W in 24V System, 4320W in 48V System

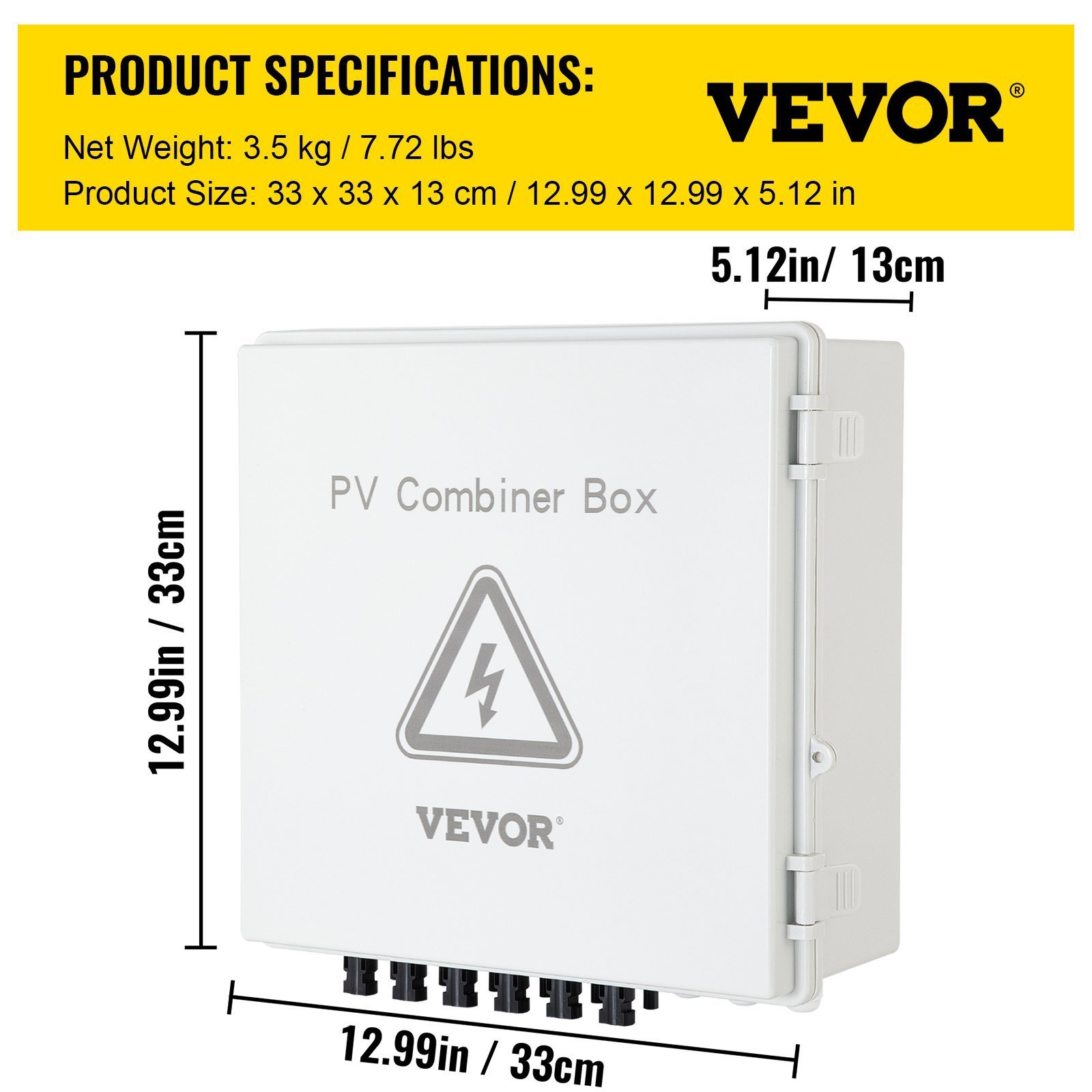

- Product Dimensions(L x W x H): 33 x 33 x 13 cm / 12.99 x 12.99 x 5.12 in
- Net Weight: 3.5 kg / 7.72 lbs
Package Content
- 1 x PV Combiner Box
- 1 x Solar Connector Tool
- 4 x Mounting Buckles
- 4 x Screws
- 1 x Product Manual
